Estes Mercury Redstone #1921 Build Part 11, Capsule Assembly Part B

Here I'm evening up the capsule side edges before gluing. The antenna housing cap is dry fitted in place to insure the top alignment.

Some "safe" plastic cements won't do the job.
Try the Plastruct Plastic Weld liquid cement.
With this type of glue you hold the pieces together then brush the cement over the inside seam. This way there is less chance of glue getting on the outside surfaces.

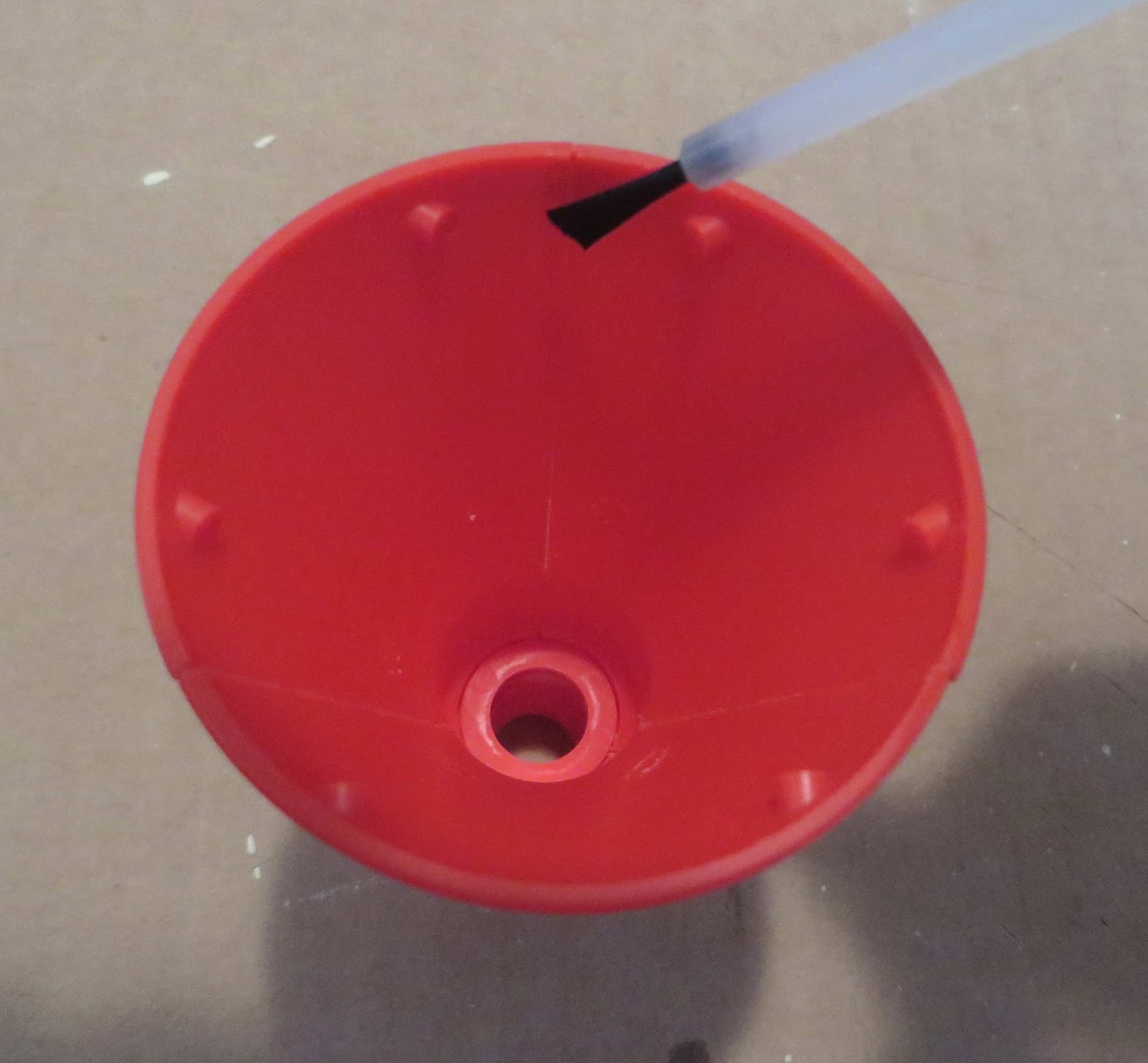

Here the sides are held together and the cement brushed on down the seams. You won't have to use a lot of glue.



To get glue into the top seams, take off the antenna housing cap.
A rubber band was wrapped to hold the top of the three sides tight.

Apply more cement to the top of the joints.





This is still a dry fit of the top and capsule coupler base. Don't glue the antenna housing on until later.

On my build, the three capsule sides snapped into the bottom coupler piece.






Reaching in from the bottom, work inside around the "X" brace applying glue to the base joint.

Again, don't glue the antenna housing on until later.
