Carded Mini Goblin Build, Finished

For those building Goblin families, this is about as small as you can go.

1/8" diameter launch lugs look big on these tiny models.

You could use MicroMaxx motors but I prefer a 1/2A-2t or 1/2 A3-4t motors. If made for MicroMaxx flights, you probably wouldn't need the clay nose weight.

Here's the mini model to the right of a standard BT-55 based Goblin.

Home print skins aren't as bright as a regular spray painted model, but the Goblin vibe is still there!

These little guys are great for first flight of the day or decorating the Christmas tree alongside the Estes plastic ornaments.

Carded Mini Goblin Build, Part 8, Nose Cone Paint & Streamer

How can you hold onto a nose cone for spray paint?

To start, one wrap of masking tape around the shoulder. Note the tape is set back about 1/32" from the lip of the nose cone. This gives you paint coverage if the nose cone isn't fully seated in the body tube.

Run a line of tape down some copy paper. Roll and stick this paper cone over the tape already in place. This gives you a "handle" for spray painting.

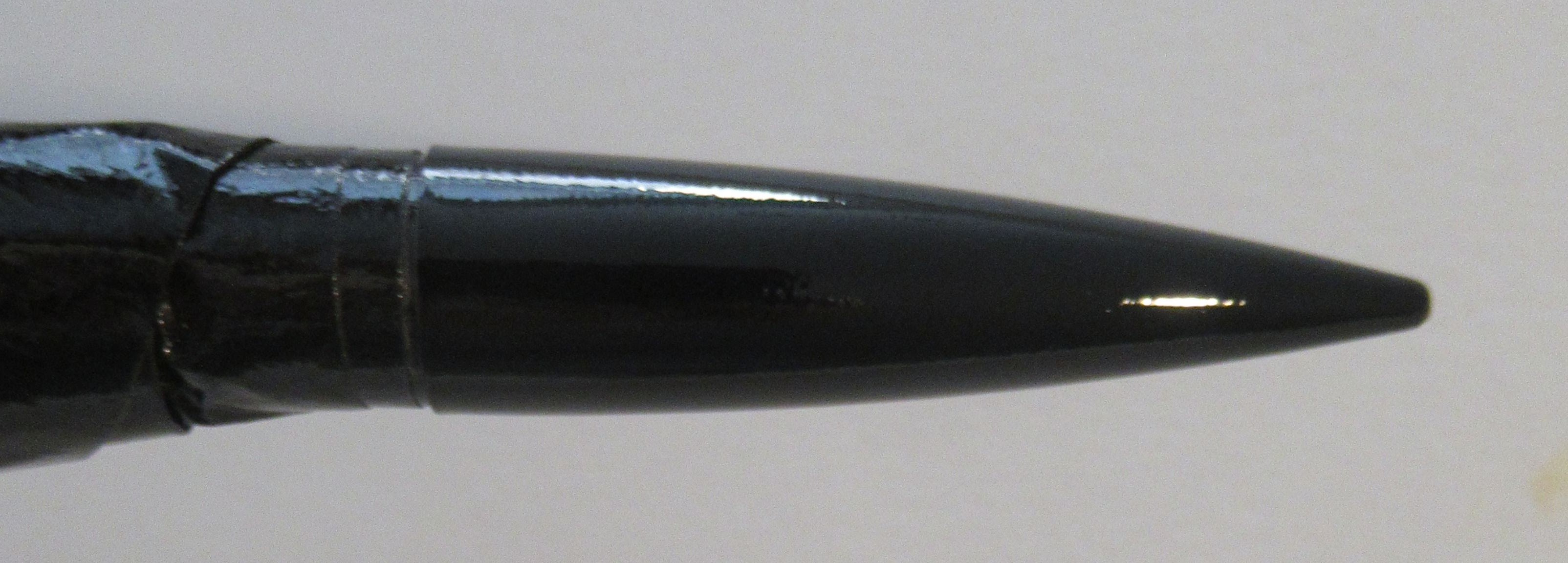

The nose cone was painted gloss black.

Tie the Kevlar line to the nose cone base. Leave a 1/2" long tail on the end and tuck it into the hole in the nose cone base.

TIP: On models this size and the smaller MicroMaxx rockets, use long tweezers to help pack the wadding, Kevlar line and streamer.

Carded Mini Goblin Build, Part 7, Launch Lug Skin

The launch lug skin gets the same glue stick coverage on the backside.

Burnish the skin onto the lug.

Note there is a slight gap where the two sides almost meet.

This is the gluing line.

I cut the BT-5 body tube a little long. It was sanded down until it was even with the body tube edge.

These nose cones have a slight shoulder lip that doesn't help with the fit in the body tube.

Round over the shoulder with 220 grit followed by 400 grit.

Fill half the nose cone with clay.

Glue the shoulder base into the nose cone.

Carded Mini Goblin Build, Part 6, Body Tube Skin

Using your aluminum angle -

Draw a pencil line down the BT-5 tube.

Pencil, not pen. Ink can bleed through the paper skin.

Apply an even glue stick coat.

Again working quickly before the glue dries,

Set the long edge down the pencil line and roll the skin around the tube.

By the time you get it aligned around the tube, some of the glue may have set up. Apply more glue to the lifted end and burnish.

The bottom photo shows a good seam end match.

Carded Mini Goblin Build, Part 5, Cutting The Fins To Size

After the fin skins have dried -

Cut out the fins on the border lines using a straightedge and sharp knife. Only cut on the side that says "Root Edge" with the thin black border.

Cut through all three layers.

Here's the other side showing the cuts. Notice this flip side has the yellow ink outside the cut lines. Drawn and printed this way you get full ink coverage on both sides.

After cutting, you may feel a wider swelled edge at the cut lines.

You can compress these sides down with a burnisher.

I'd recommend rubbing in a small bead of white glue down the cut edges to seal them. Keep the glue off flat sides of the fins. Remember - white glue dries clear, wood glue dries yellow.

Four fins, ready for gluing onto the rocket body.

I used the decal placement from the 1970s original Goblin kit.

On my first carded model, I remember being surprised at how strong and stiff the fins were.

Carded Mini Goblin Build, Part 4, Fin Gluing

Fold the fin skin down the embossed line you made in the last step.

I'm using my favorite burnisher, the Sharpie barrel, to get a sharp crease.

I use the color changing glue sticks to adhere the fin and body tube skins.

You've got to work fairly fast - when the applied glue turns from purple to clear, the glue has almost dried.

Set the crease fold over the rounded cardstock edge then lay the the sides down.

Try to get the leading edge fold right down on the cardstock edge. Lay the fold on first, then follow adhering the sides.

On this fin, I probably could have got the left tip a little father down onto the cardstock center. It should be okay as is.

Carded Mini Goblin Build, Part 3, Fin Prepping

One side of the cereal box (central core) has printing on it.

Sand down and rough up the inked side with some 400 grit.

Be ready, that dust can get everywhere.

Using a straightedge and sharp knife, cut one edge straight and square. This will end up being the leading edge of the fins.

Roll over the flat leading edge with some 400 grit sandpaper.

This rounding will give you a tighter fit of the folded 110 lb. printed skin cover.

Before cutting out the fin cover skins,

Spray the printed side of both the 20 lb. and 110 lb. with clear acrylic. Paper skinned models can get dirty from handling.

Emboss a fold line down the leading edge with a straightedge and a non serrated tip of a butter knife.

Here you can see the embossed line down the leading edge fold.

The emboss line helps get a sharper, straight fold.

Note one side of the fin skin is wider than the other. This guarantees full color coverage when the fin is cut out.



Carded Mini Goblin Build, Part 2, Re-draws

Why bother redrawing the art?

The new model will be very small. Many details can disappear when reduced.

On the left, look close at the white lines where the arms overlap the body. When the art is small, those lines could  close up.

The new redraw is on the right. Note the white lines are thicker and overall the outside edges are cleaned up.

When drawing a downscale I probably spend too much time trying to match the fonts from the original decal sheet.

On the left is the original "3".

I found something close and played with the vector points to get the image on the right.

Most people wouldn't notice the difference. But, it gives me something to do.

Carded Mini Goblin, Part 1, Parts

Goblin rockets are hot right now.
How about a smaller BT-5 version for 13mm engines? This one is tiny at just XXXX" tall! It performs like a BT-5 Mosquito. You can also adapt it for Micro Maxx motors.

This model has paper skinned "butterflied" fins where the center fold becomes a rounded leading edge. The center core is cereal box cardboard.

The decal art was taken from the online instructions at Jim Z's, cleaned up a bit and reduced.

Don't use the above illustration at the right to make the rocket. There was some corrections made from what you see here.

Patreon supporters can email me at: oddlrockets@bellsouth.net and I'll send the full size PDF.

Two home prints are made, one on 20 lb. paper a second on 110 lb. cardstock. This 20 lb. print gives you enough to make two rocket bodies and launch lug skins. The 110 lb. cardstock print makes two sets of fins.

PARTS: You'll also need some BT-5, a plastic Quark style nose cone, 1/8" diameter launch lug, 65 lb. Kevlar, a 13mm engine block and clay nose weight.
TOOLS: A sharp knife, a dull butter knife for scoring the fin leading edges, clear acrylic spray, white glue and a glue stick.

To give an idea how small these are -

Here's a side by side of my BT-60 Red Maxx next to an older BT-5 downscale version. The Micro Maxx is only 5 1/4" tall.

Heck, if you make enough of these, you could decorate the Christmas tree.

Estes Condor #0807 Build, Finished

Here's the front end of the booster tubing.

The wrap is from the original decal sheet and is slightly yellowed.

The glider is attached to the booster.

It's like the Estes Orbital Transport, the glider flops around in the wind when on the launcher.

Ken Caldwell figured out a great way to hold the back end of the glider in place during boost.

A short wire is glued on the bottom center of the glider. A small tube (off a WD-40 can) is glued to the booster tube. The short wire slips into the tube while sliding the front dowel into the upper lug.

The booster canopy is a simple, rounded rectangle.

A good looking model!

Interesting how small the glider is - when an actual "condor" has one of the widest wingspans.

Estes Condor #0807 Build, Part 23, More Decals

Well, I did my best to draw the decals correctly, but the red border lines on the wing tips came up short.

I cut a small piece of one of the extras to extend the line to the edge.

The red bar over the body tube had to be trimmed so the width matched up with the red lines on the wings.

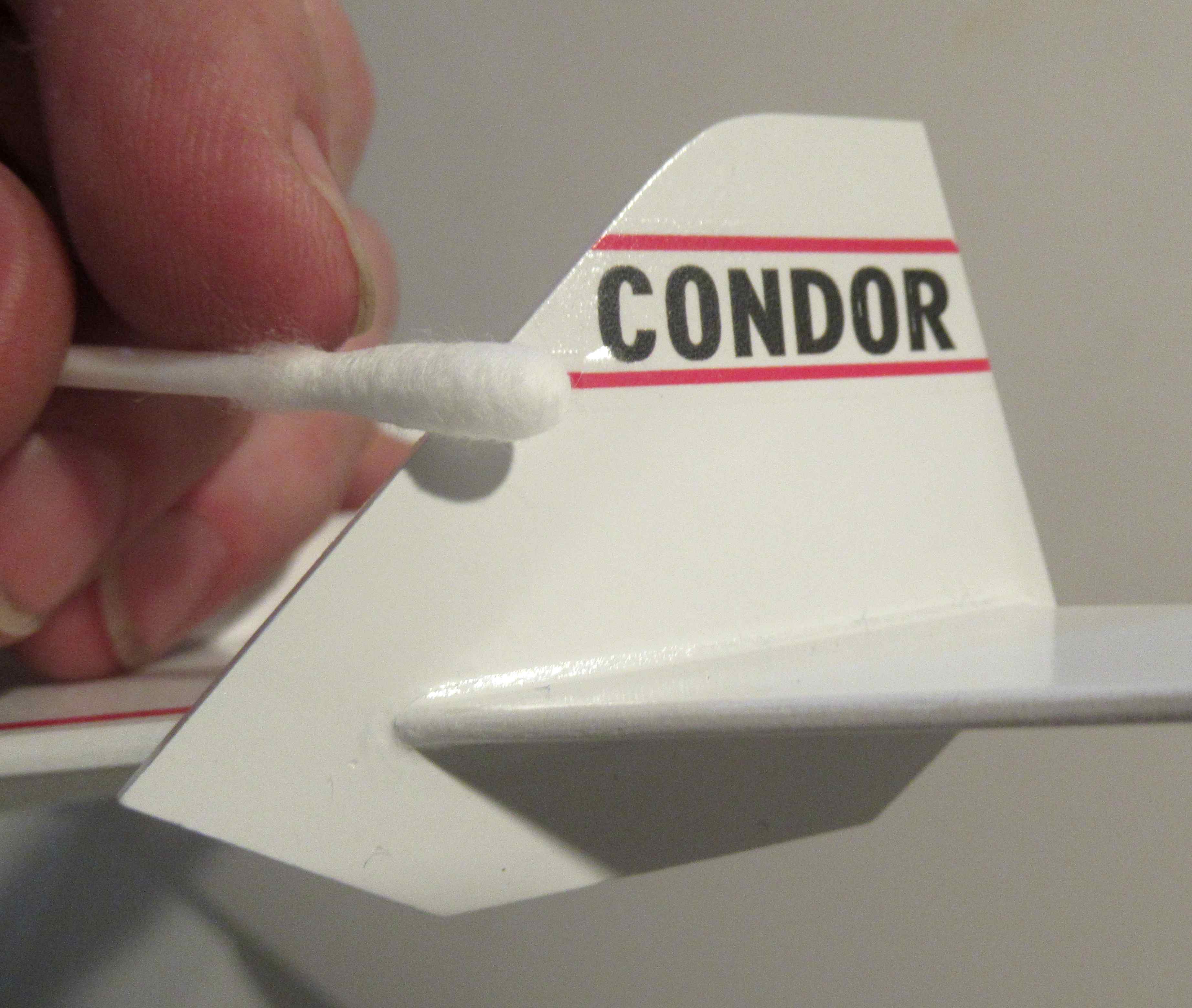

I don't usually use a clear coat but I did apply some clear acrylic Pledge with a Q-tip. I was concerned that the front edges could lift.

Earlier in the build, the instructions said to glue in the engine mount with the centering ring even with the end of the tube. I recessed the mount so I could apply a glue fillet around the low end.

Interesting that the decal placement picture shows the mount slightly recessed.

Estes Condor #0807 Build, Part 22, Home Print Decal Fix

I was stuck and had to draw and print new decals.

I will keep the larger wrap around decal on the model so I didn't draw that one.

I made double decals.

Here's why I made two of each.

Home print decals aren't opaque and when set over bright white, the red turns to dark pink. This piece will need a two-layer decal.

If the home print red decals are set against some sprayed red paint you can tell the difference. It requires a double layer decal to slightly darken and match the red paint next to it.

Red decals an inch away from red paint aren't as noticeable.

The red stripe decals on the wing fins are difficult to get straight and evenly spaced.

Notice the decal strip is a little long. It bends and continues up the inside of the wing tip.

To cut the end even with the joint -

Wait for the decal to dry.

With a new single edge razor blade, cut through the decal extension and peel off the excess.

Estes Condor #0807 Build, Part 21, Decal Problems

I was anticipating some decal problems. Judging by the face card art, the kit is probably over twenty years old.

I went ahead and brushed on a coat of Microscale Liquid Decal Film - this usually helps.

I usually won't start with a large decal.

The roll pattern decal went on without any problems and matched up perfectly.

It is a little yellowed, but I'll go with it.

My good luck didn't continue.

The wing tip decals on the glider broke up.

As the red trim decal dried it started to curl and lift.

I'm going to have to redraw many of the decals and home print a partial set. There will be duplicates. The decals are set over white paint and I may have to do two layers to get a bright red.

FSI Javelin Nose Cone Fit?

On the Facebook group - Rocketry Yard Sale, Buy, Sell & Trade,

Garth I. is selling an interesting OOP FSI Javelin kit.

Check out the shoulder lip overhang on the adapter and nose cone.

I wonder how many buyers left that lip on their finished models. Unless you have a lathe, it might be difficult to keep the nose cone round.

I've built a few FSI kits in the 1970s. The fit and finish of the kit parts were good, especially the centering rings. This might be a later kit release.

Estes Condor #0807 Build, Part 20, Red Paint Mask

The front end of the booster and front of the glider get red paint.

The mask line is 2" from the front end of the body tube. The glider mask is about 1/32" behind the canard.

Red was sprayed and the tape pulled.

The mask lines came out clean and sharp.

In the upper right body tube picture above you can see some red over spray.

Some quick wipes with a damp magic sponge took off the red blotch. You can remove small bits of paint like this - Just don't wait too long so the paint won't set up.
