Friday, December 13, 2019

Semroc V2 Build, Part 6, Gluing On Servos


The servo slot is cut out of the fin template.
Set this over the fin and do a pencil tracing inside the servo slot.

The right side shows the servo glued in place. I'm checking the position with the template.





Servos are glued on both sides of the four fins.

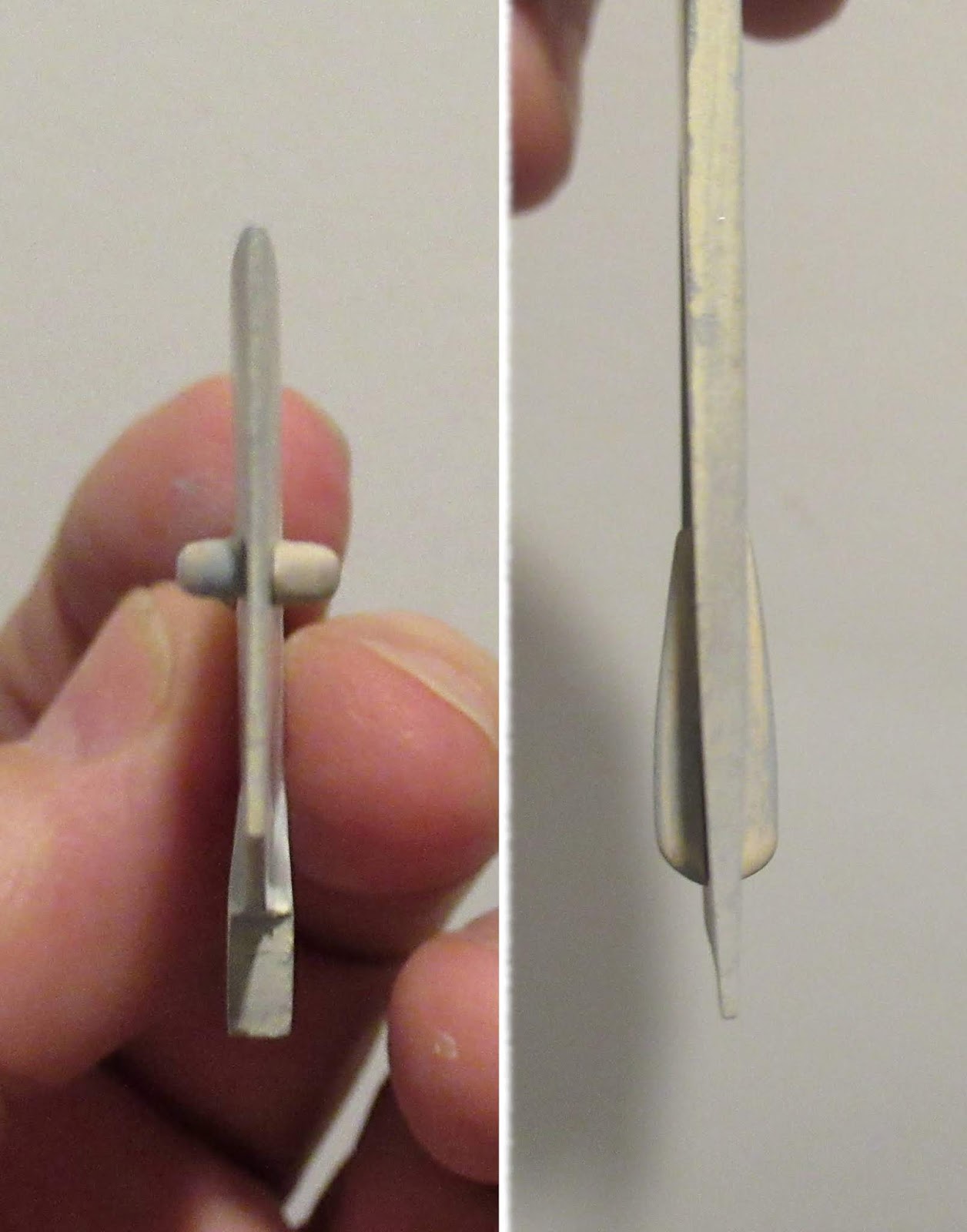

Look over the trailing edge and from the side to line up the opposite servos.






I wanted to apply glue fillets around the servo sides but keep them small.

On the left is a Q-tip right out of the box. The head is pretty wide.
TIP: On the right I've spun the cotton between my thumb and index finger, forming it into a narrower tip. This will keep the fillets small.






Apply a thin line of glue on the servo edge. Remove the excess and smooth the glue with the tapered Q-tip.

On the right is the finished fin ready to be glued onto the boat tail.
